OUR CURRENT PRODUCTS.

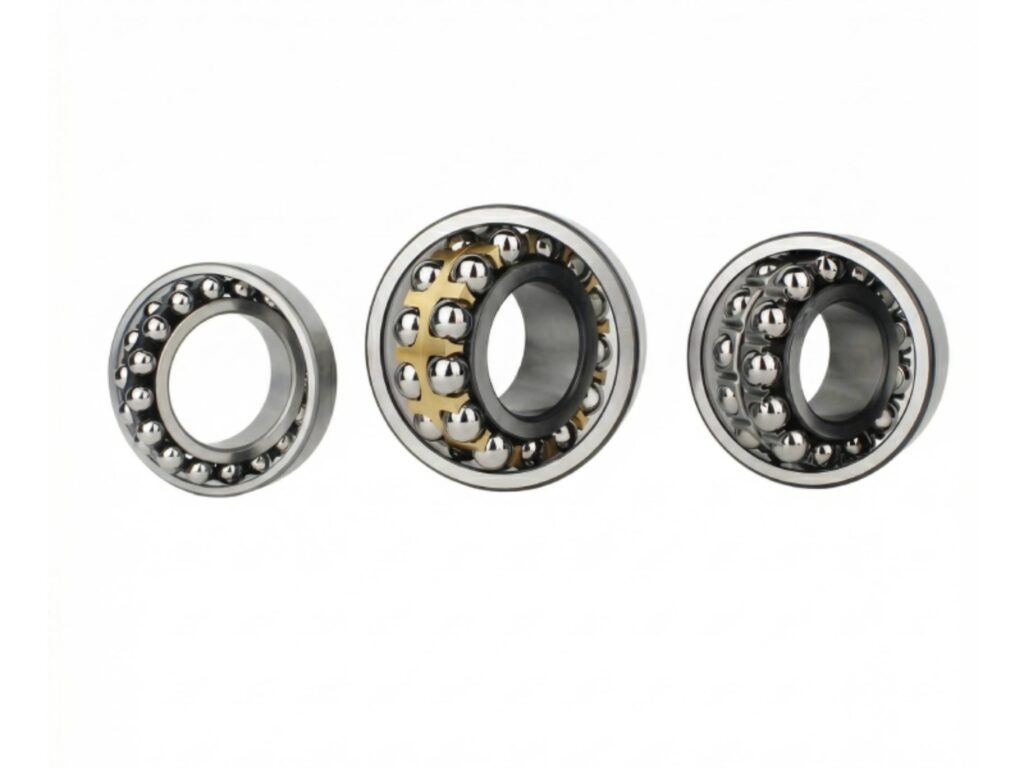

SELF ALIGNING BALL BEARINGS

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Ball bearings tend to have lower load capacity for their size than other kinds of rolling-element bearings due to the smaller contact area between the balls and races. However, they can tolerate some misalignment of the inner and outer races.

SPHERICAL ROLLER BEARINGS

A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment. Typically these bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers.Despite what their name may imply, spherical roller bearings are not truly spherical in shape. The rolling elements of spherical roller bearings are mainly cylindrical in shape, but have a profile that makes them appear like cylinders that have been slightly over-inflated.

Spherical roller bearings consist of an inner ring with two raceways inclined at an angle to the bearing axis, an outer ring with a common spherical raceway, spherical rollers, cages and, in certain designs, also internal guide rings or center rings. The bearings can also be sealed.

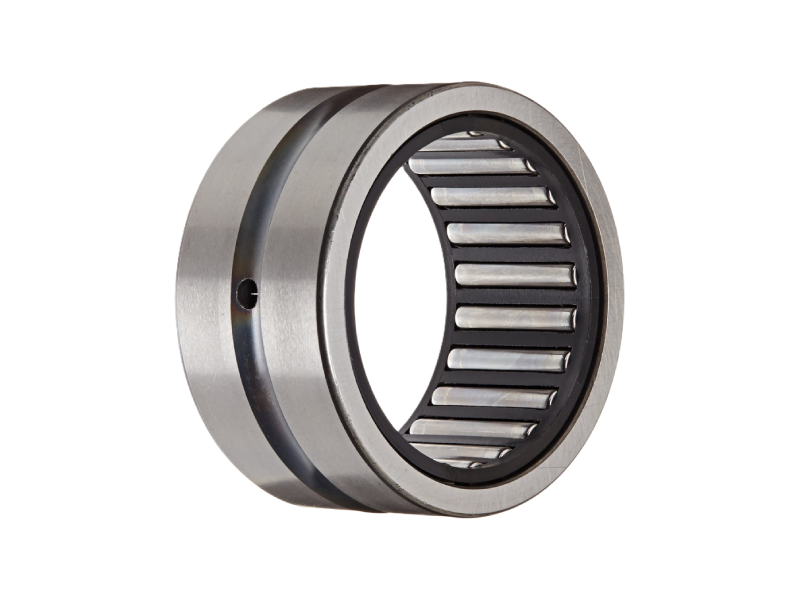

NEEDLE ROLLER BEARINGS

A needle roller bearing is a special type of roller bearing which uses long, thin cylindrical rollers resembling needles. Ordinary roller bearings’ rollers are only slightly longer than their diameter, but needle bearings typically have rollers that are at least four times longer than their diameter.Like all bearings, they are used to reduce the friction of a rotating surface.

Needle bearings are heavily used in automobile components such as rocker arm pivots, pumps, compressors, and transmissions. The drive shaft of a rear-wheel drive vehicle typically has at least eight needle bearings (four in each U joint) and often more if it is particularly long, or operates on steep slopes.

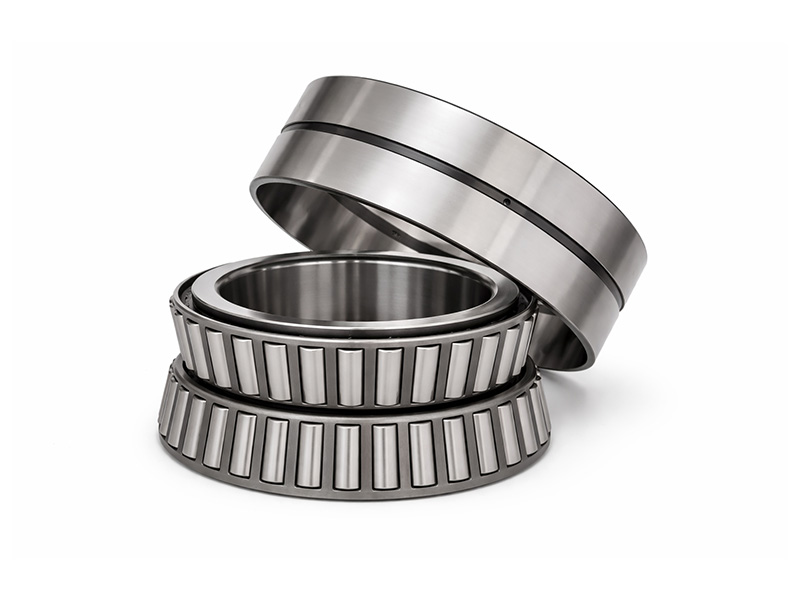

TAPPER ROLLER BEARING

The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing. This geometry makes the motion of the cones remain coaxial, with no sliding motion between the raceways and the OD of the rollers.

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains & evenly spaces the rollers. The cup is simply the outer ring. Internal clearance is established during mounting by the axial position of the cone relative to the cup, although preloaded installations without clearance are common.

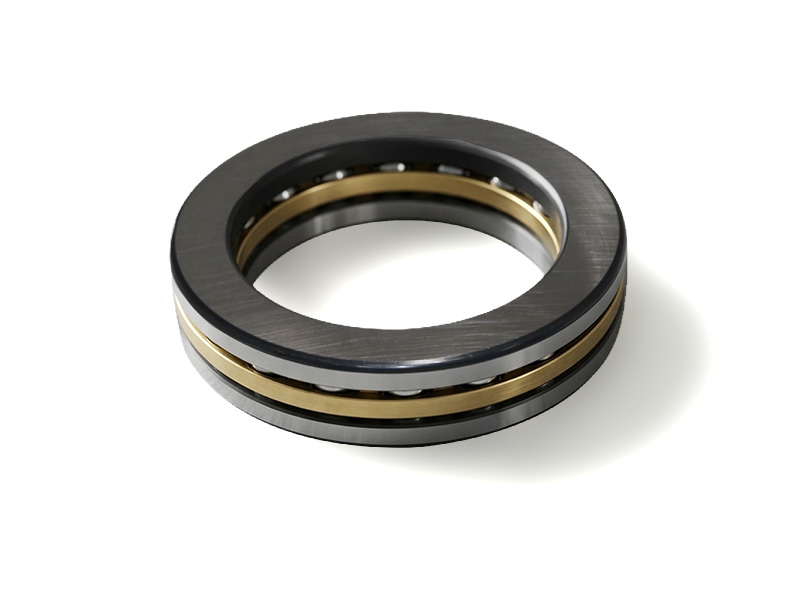

THRUST BALL AND ROLLER BEARINGS

A thrust bearing is a particular type of rotary bearing. Like other bearings they permit rotation between parts, but they are designed to support a predominantly axial load.

Thrust bearings come in several varieties.

Thrust ball bearings, composed of bearing balls supported in a ring, can be used in low thrust applications where there is little axial load.
Cylindrical thrust roller bearings consist of small cylindrical rollers arranged flat with their axes pointing to the axis of the bearing. They give very good carrying capacity and are cheap, but tend to wear due to the differences in radial speed and friction which is higher than with ball bearings.

Thrust bearings are commonly used in automotive, marine, and aerospace applications. They are also used in the main and tail rotor blade grips of RC (radio controlled) helicopters

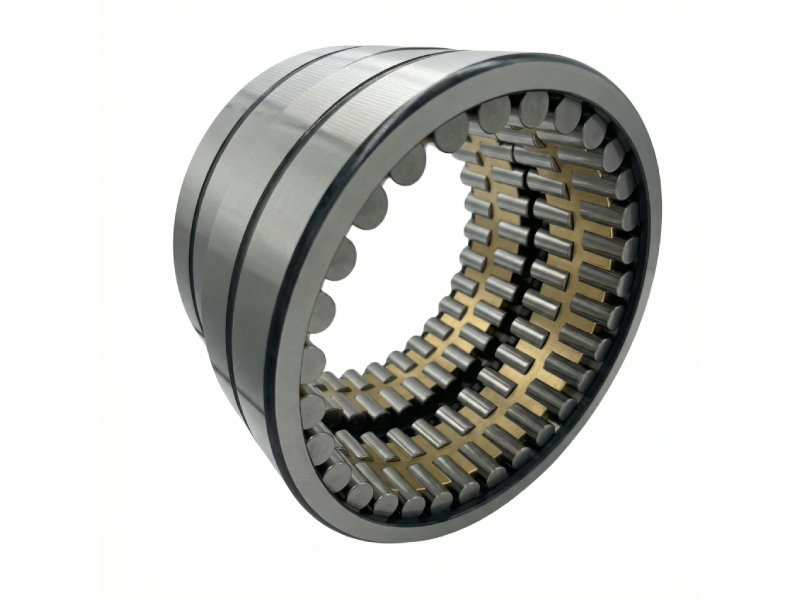

CYLINDRICAL ROLLER BEARINGS

In bearings of this type, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.

There are different types designated as NU, NJ, NUP, N, NF (for single-row bearings), NNU, and NN (for double-row bearings depending on the design or absence of side ribs).

The outer and inner rings of all types are separable.
a Y-bearing (insert bearing) which is based on a single row deep groove ball bearing with a sphered (convex) outside surface and an extended inner ring

a housing, which has a correspondingly sphered but concave bore
Y-bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

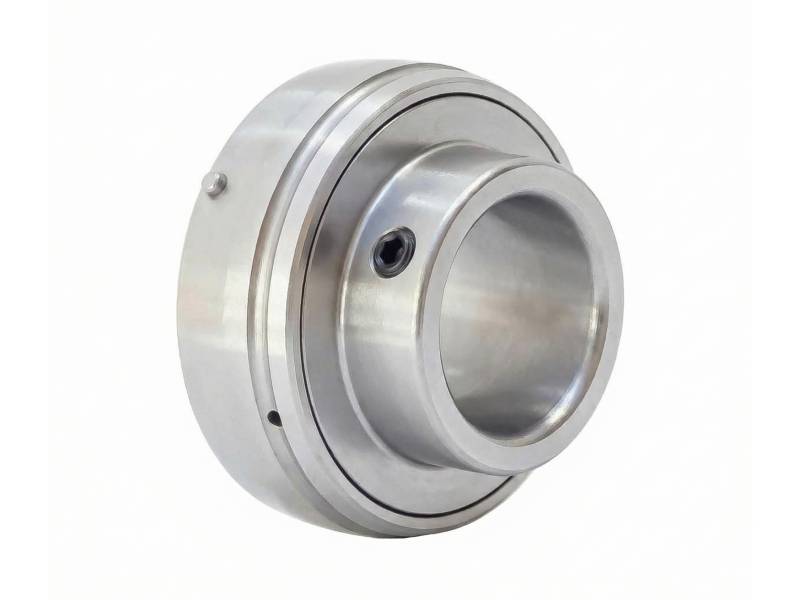

Y-UNIT BEARINGS UNITS

  • a Y-bearing (insert bearing) which is based on a single row deep groove ball bearing with a sphered (convex) outside surface and an extended inner ring
  • a housing, which has a correspondingly sphered but concave bore
    Y-bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Applications

  • Because of their versatility and cost effectiveness, Y-bearing units are typically found in the following applications:
  • agricultural machinery
  • construction equipment
  • conveyor systems
  • textile machines and fans
  • machines for food and beverage processing and packaging

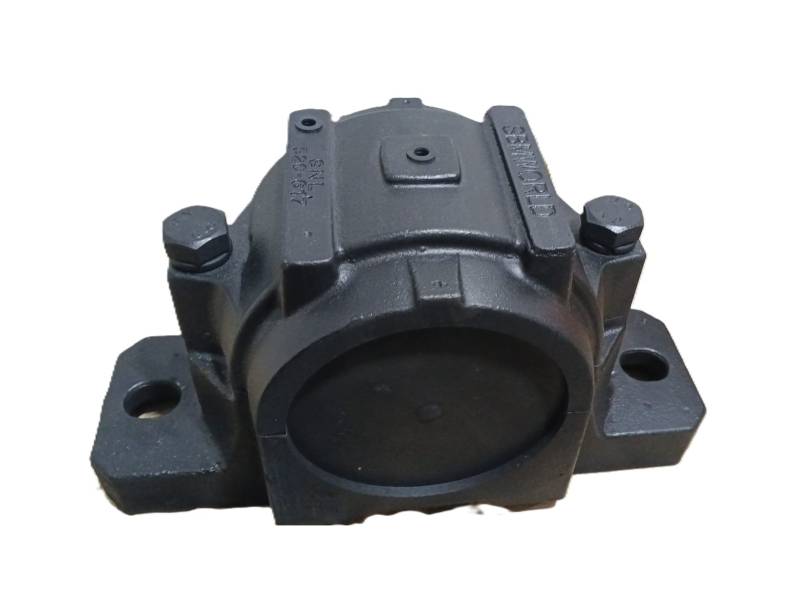

PLUMMER BLOCKS

To ensure effective sealing, plummer blocks are available with a variety of special sealing options and end covers. Benefits include a facility for easy mounting and dismounting of pre-assembled shafts.

Plummer block housings can be used with high-capacity spherical roller bearings or self-aligning ball bearings. They are manufactured from high-strength cast iron as standard but are also available in cast steel or spheroidal graphite cast iron. The housings have a re-lubrication facility and can be used with either oil or grease lubrication.

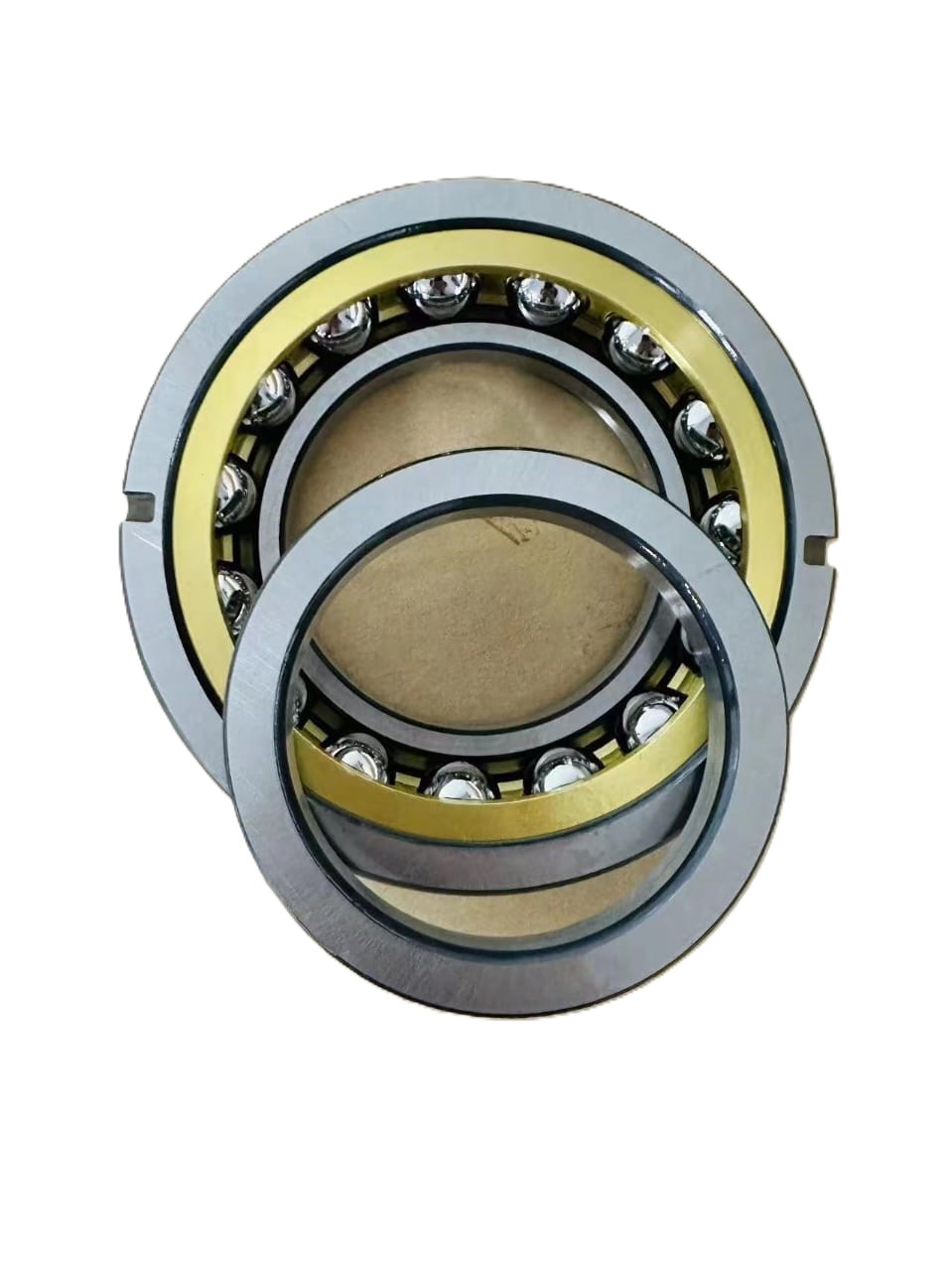

Four-Point Contact Ball Bearing

Four point contact bearings are single row angular contact ball bearings and therefore require significantly less space in an axial direction than double row designs.

The bearings comprise solid outer rings, split inner rings and ball and cage assemblies with brass or polyamide cages. Due to the two-piece inner rings, a large number of balls can be accommodated. The halves of the inner ring are matched to the specific bearing and must not be interchanged with those of bearings of the same size. The outer ring with the ball and cage assembly can be fitted separately from the halves of the inner ring.

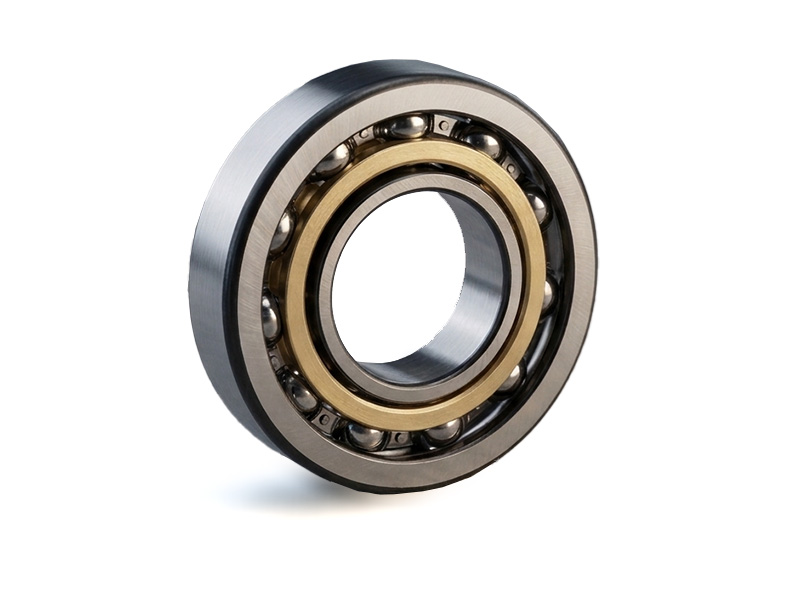

Angular Contact Ball Bearing

Angular contact ball bearings
Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. The raceways of the inner and outer rings are offset in relation to each other in the direction of the bearing axis. The bearings are available in open and sealed versions. Their self-alignment capacity is very small.

Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. They correspond in design to single row angular contact ball bearings in pairs in an O arrangement but give a narrower design than these. They differ in the size of their contact angle.

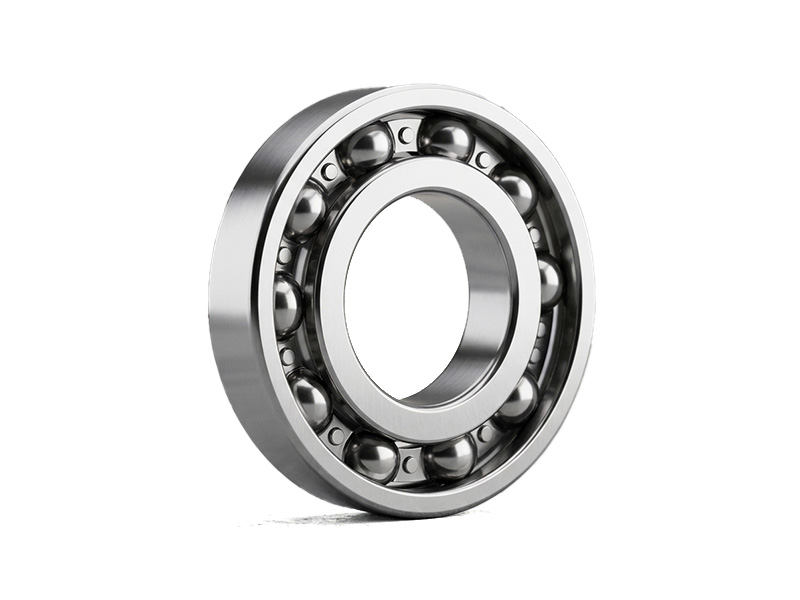

Deep Groove Ball Bearing

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain; they are available in single and double row designs and and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields. Due to their low frictional torque, they are suitable for high speeds.
